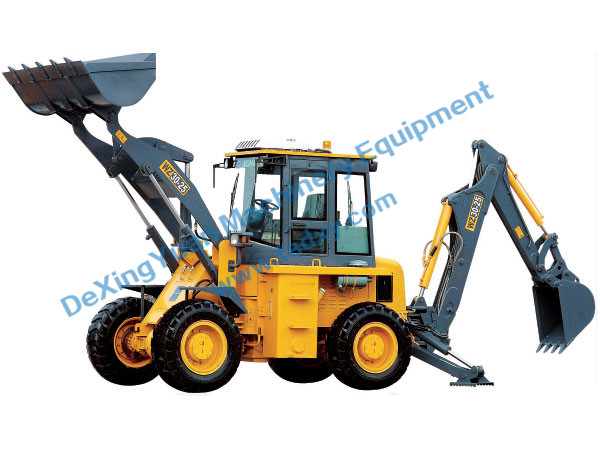

WZ30-25 Backhoe Loader
● Adopt the Yucai engine which is powerful and with low maintenance. It has the high power and good performance ability .
● The transmission part adopts the mature component of ZL30 series loader. It has high safety factor.
● The leading articulated frame, with the front and axle bridge rationally distributed, makes it has exceptional stability when loading and excavating.
● Pneumatic valve control system makes car-stopping brake with urgent brake. So it is more safe when braking.
● The operation devices are designed according to humanization.
● Firstly adopts the pivot control system in the backhoe loader.
● The whole day-lighting closed driver′s cabin is furnished with the system of the air conditioner,ROPS system.It is safe and comfortable,and the visual field is broad.It adopts the sound insulation,the heat insulation and shock attenuation, which improved the comfortableness of the operating environment.
● Various instruments such as four in one bucket, crash hammer can be chosen.
Parameters:
Item | unit | value |
|---|---|---|
Overall Dimensions(L×W×H) | mm | 8000×2200×3350 |
Bucket Capacity | m3 | 1 |
Dumping Height | mm | 2700 |
Dumping reach | mm | 950 |
Digger capacity | m3 | 0.3 |
Max. digging depth | mm | 4500 |
Min. tutning radius | m | 4.5 |
Max. digging radius | mm | 5471 |
Digger Steering angle | ° | ±85 |
Travel speed | km/h | 33 |
Rated power | kW | 65 |
Wheel base | mm | 1700 |
Wheel tread | mm | 2600 |
Rated raising capacity | kN | 25 |
Overall weight | kg | 9500 |
